NOTE:

NOTE:

Configuration and color might vary depending on your model.

Product release information

Product number

2CC72AA

Release date

General

Brand:	HP
Categories:	Computers > Desktop PCs > Desktop PCs
LSN:
Barcode:
Colour:	Black • White
Model Number:	2CC72AA
Type:	PC

Operating System

Bundled Operating System:	Windows 10 (64-Bit)
Operating System Architecture:	64-bit

CPU

CPU Family:	A
CPU Speed:	3.1 GHz
CPU Type:	A8-9600
Max Turbo Speed:	4.2 GHz
Number of Cores:	Quad-Core

Memory

Discrete Graphics Memory Type:	GDDR4
Maximum Memory Supported:	16 GB
Memory Capacity:	16GB ddr4 2400
Memory Layout (slots X Size):	2 x 8 GB
Memory Slot (Total):	2x DIMM
Memory Spec:	DDR4-SDRAM
Memory Speed:	2400

Graphics

Discrete Graphics Adapter Model:	NVIDIA® GeForce® GT 730 4GB Dedicated
On-board Graphics Adapter Model:	AMD Radeon R7

Hard Drive

HDD Capacity:	1000GB
HDD Interface:	Serial ATA
HDD RPM:	7200 RPM
Number Of SSDs Installed:	1
SSD or Flash Memory Capacity:	128GB
Solid-state Drive Interfaces:	NVMe 3.0 • PCI Express
Storage Media:	HDD+SSD
Total Storage Capacity:	128GB

Optical Drive

Optical Drive Type:

DVD Super Multi

Speakers

Audio Output Channels:

5.1 channels

Integrated Devices

Card Reader:

Yes

Power

Power Supply:

300 W

Networking

Bluetooth:	Yes
Bluetooth Version:	4.2
Ethernet LAN Data Rates:	10 • 100 • 1000 Mbit/s
LAN:	Yes
WLAN:	802.11a • Wi-Fi 5 (802.11ac) • 802.11b • 802.11g • Wi-Fi 4 (802.11n)
Wi-Fi:	Yes

Ports

Combo Headphone/Mic Port:	Yes
Ethernet LAN Ports:	1
HDMI:	1
Headphone Outputs:	1
Microphone In:	Yes
USB 2.0:	2
USB 3.0 (3.1 Gen 1) Type-A Ports:	3
USB 3.0 (3.1 Gen 1) Type-C Ports:	1
VGA /D-SUB Ports Quantity:	1

Package Contents

Mouse Included:

n/a

Physical Specification

Chassis Type:	Desktop
Item Depth (mm):	315
Item Height (mm):	307
Item Width (mm):	163
Weight (kg):	5.7

Certifications

EPEAT Compliance:

Silver

• Microsoft Windows 10 (64-bit)/Office2007/vlc player/adobe reader. very good condition

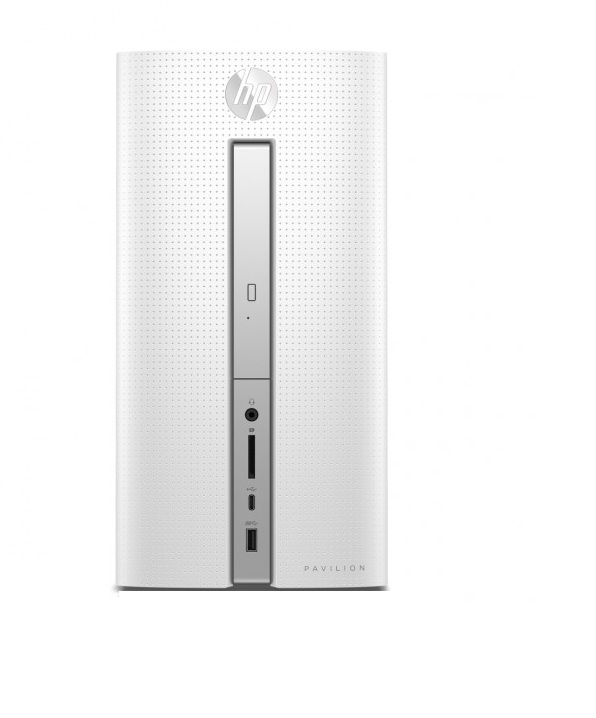

HP Pavilion 570-p048a Desktop PC Product Specifications

NOTE:

Configuration and color might vary depending on your model.

Product release information

Product number

2CC72AA

Release date

13-Feb-2018

Country/Region sold in

Australia/New Zealand

Motherboard

Willow2

Figure : Willow2 motherboard top view

• Form factor: Customized: 22.0×20.5 cm (8.7×8.1 in)
• Chipset: AMD Promontory FCH
• Memory sockets: 2 x DDR4
• Processor socket: AM4
• Expansion Slots:
  • One PCI-E x16 socket
  • One M.2 socket 1, key A
  • One M.2 socket 3, key M
• For more details, see Willow2 motherboard specifications.

Processor

AMD A8-9600 (Bristol Ridge)

• CPU speed: 3.1 GHz (max turbo boost – 3.5 GHz)
• CPU cores: 4
• CPU Cache: 2 MB L2
• TDP: 65 W (cTDP – 45 W)
• Integrated graphics: Radeon R7 Series

Processor upgrade information

Memory

16 GB

• Amount: 16 GB
• Speed: PC4-19200 MB/s
• Type: DDR4-2400

Memory upgrade information

• Dual channel memory architecture
• Two DDR4 UDIMM (288-pin) sockets
• Supports PC4-19200 (DRR4-2400)
• Supports 2 GB, 4 GB, and 8 GB DDR4 UDIMMs
• Supports up to 4 GB on 32-bit systems

  NOTE:

  32-bit systems cannot address a full 4.0 GB of memory.

• Supports up to 16 GB (unbuffered) on 64-bit computers

  NOTE:

  Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

Video graphics

NVIDIA GeForce GT 730 (4 GB)

Figure : Video card

Figure : Video card ports

1. HDMI
2. DVI-I

• Form factor: Low profile PCB with ATX
• Dimensions: 6.9×14.5 cm (2.7×5.7 in)
• Rear I/O connectors: Dual Link DVI-I + HDMI
• Maximum resolution:
  • HDMI resolution: 1920 x 1080 @ 60 Hz (HDMI 1.4)
  • DVI resolution: 2560 x 1600 x 32bpp @ 60Hz (Dual Link)
  • Analog VGA (via DVI to VGA adapter – not included with card) resolution: 2048 x 1536 x 32bpp @ 60Hz

    NOTE:

    This card does not have a VGA connector. VGA connection is only possible through a DVI to VGA adapter which is not inclued with the graphics card.

• Memory size: 4 GB (64-bit)
• Memory type: 256M x 16 DDR3 (Micron/Hynix) @ 8pcs
• Supports Blu-ray
• Total power consumption: <35 W max
• Supports up to 2 displays at the same time
• Engine clock: 901 MHz
• Memory clock: 900 MHz
• Cooling: Active fan-sink (Active cooling with dynamic speed)
• External power cable: No
• Internal ports: 2-pin fan connector for fan sink power

Integrated graphics

• Integrated AMD Radeon R7 Graphics

  NOTE:

  Integrated video is not available if a graphics card is installed.

Sound/Audio

Integrated audio

• Audio Codec: ALC3863-CG
• High Definition (Azalia) 5.1 channel audio support

  NOTE:

  The motherboard supports 5.1 surround sound. If the computer does not have the required audio jacks for a 5.1 configuration, additional hardware is required to use 5.1 surround sound.

• Audio jack presence detection

  NOTE:

  An internal speaker is not included with integrated audio. External speakers or headphones are required to hear sound.

  NOTE:

  Integrated audio is not available if a sound card is installed.

Networking

Wireless LAN 802.11a/b/g/n/ac (1×1) and Bluetooth 4.2 M.2

• Interface: M.2
• Transmission standards: 802.11 a/b/g/n/ac

LAN: 1000BASE-T

• Technology: Realtek RTL8161
• Data transfer speeds: up to 10/100/1000 Mb/s
• Transmission standards: 1000BASE-T Ethernet

Hard drive

128 GB PCIe NVMe TLC M.2 Solid State

• Size: 128 GB
• Interface: M.2
• Type: TLC Solid State

1 TB

• Size: 1 TB
• Interface: SATA
• Rotational Speed: 7200 RPM

CD/DVD disc drive

DVD Writer

• Data transfer rates up to 3,600 KB/s (CD read/write)
• Data transfer rates up to 10,800 KB/s (DVD read/write)

Formats/Disc types	Write speeds	Read speeds
DVD
DVD-ROM SL	N/A	up to 8x
DVD-ROM DL	N/A	up to 8x
DVD+R SL	up to 8x	up to 8x
DVD+R DL	up to 6x	up to 8x
DVD-R SL	up to 8x	up to 8x
DVD-R DL	up to 6x	up to 8x
DVD+RW	up to 8x	up to 8x
DVD-RW	up to 6x	up to 8x
CD
CD-R	up to 24x	up to 24x
CD-RW	up to 10x	up to 24x
CD-ROM	N/A	up to 24x

Memory card reader

3-in-1 memory card reader

Figure : Memory card reader

Supports the following cards:

• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• SDXC

Computer case

Chassis

• Height: 30.71 cm (12.09 in)
• Width: 16.31 cm (6.42 in)
• Depth: 39.50 cm (12.40 in)
• Weight 5.70 kg (12.57 lb) – without packaging

Power supply

Internal 300 W power supply

• 300 W internal E6 Bronze efficiency power supply
• Active efficiency Bronze level: 85%

I/O ports

Front I/O ports

• USB 3.0: 1
• USB 3.0-Type C: 1
• Headphone/Microphone: 1

Back I/O ports

NOTE:

The configuration might vary depending on your model (for example, if a dedicated graphics card is included). Any modifications or upgrades might change the configuration, port accessibility, and port functionality.

Figure : Willow2 back I/O panel

1. VGA
2. HDMI out
3. USB 3.0: 2
4. USB 2.0: 2
5. LAN (Ethernet)
6. Audio jacks

Keyboard, mouse and input devices

Wireless keyboard

Wireless mouse

Software

Titles that shipped with PC

NOTE:

HP provides basic support for software that comes with the computer. For in-depth feature assistance, refer to the help section in the software or on the software vendor’s Web site.

Software Category	Software Title	Recovery Manager: Program Reinstallation
Operating System	Microsoft Windows 10 Home (64-bit)	No
Entertainment, Music & Games	Booking.com CyberLink Power Media Player HP Audio Switch HP Games Netflix Solitaire 5.1 Surround Sound (simulated through headphones)	No Yes Yes No No No No
Productivity	Dropbox HP Jumpstart HP Orbit	No No Yes
Imaging, Photography, Video & Film	CyberLink PowerDirector HP ePrint	Yes No
Connected with HP	HP Lounge	No
Security	McAfee LiveSafe (30-day subscription)	No
Support	HP Documentation HP PC Hardware Diagnostics UEFI HP Support Assistant	Yes Yes Yes
Recovery	HP Recovery Manager	No
Browser	Microsoft Edge	No
