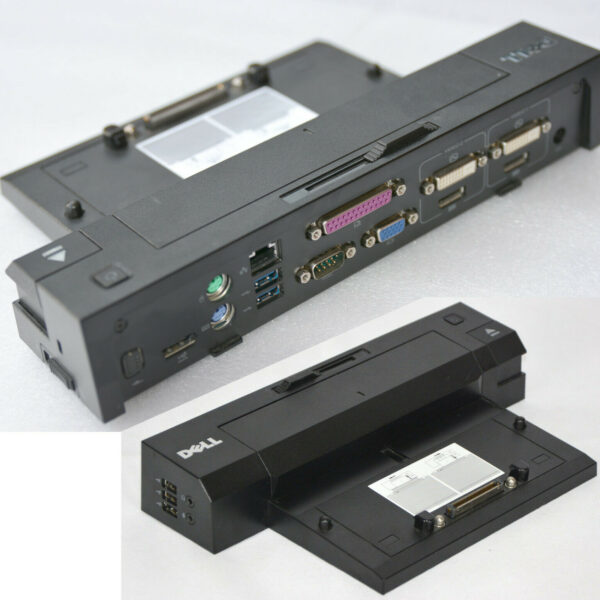

Description
It fits for:
Dell Latitude: E6220 E6320 E6520 E6400 / 6400 ATG / E6400 E6410 E6500 E6510 E5400 E5410 E5420 E5500 E5510 E5520 E4300 E4310 E4200
as well as for Dell Precision : M6400, M6500, M6600, M4400, M4500, M4600.
Technical details:
Dimensions: 310 x 180 x 70 mm
Connections:
2 x display – DVI-D, 24 + 1-pin
2 x Display – DP – Display Port
1 x display – VGA, 15-pin
5 x Hi-Speed 2.0 USB – USB Type A, 4-pin,
1x eSata
1 x network – RJ-45 – Ethernet
1 x parallel – IEEE 1284 (EPP / ECP) - D-Sub (DB-25), 25-pin
1 x serial – RS-232 – D-Sub (DB-9), 9-pin
1 x mouse – Mini-DIN (PS / 2 type), 6-pin
1 x keyboard – Mini-DIN (PS / 2 type), 6-pin
1 x audio – line-in – 3.5 mm
1 x audio – line-out – 3.5 mm
1 x Dell E-Series monitor stand connector
