Description

Power supply	300 W
Processor
Processor frequency	3 GHz
Processor family	7th gen Intel® Core™ i5
Processor model	i5-7400
Processor cores	4
Processor boost frequency	3.5 GHz
Processor socket	LGA 1151 (Socket H4)
Processor cache	6 MB
Processor cache type	Smart Cache
System bus rate	8 GT/s
Processor threads	4
Number of processors installed	1
PCI Express slots version	3.0
Processor lithography	14 nm
Processor operating modes	64-bit
Stepping	B0
Bus type	DMI3
Processor codename	Kaby Lake
Thermal Design Power (TDP)	65 W
Processor series	Intel Core i5-7400 Desktop Series
Maximum number of PCI Express lanes	16
PCI Express configurations	1×16,1×8+2×4,2×8
Tjunction	100 °C
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Memory channels supported by processor	Dual
ECC supported by processor	N
Memory voltage supported by processor	1.35 V
Memory
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory slots	2x DIMM
Memory clock speed	2400 MHz
Internal memory	16 GB
Memory layout (slots x size)	2 x 8 GB
Storage
Total storage capacity	2000 GB+120GB NVMe M.2 SSD
Storage media	HDD
Card reader integrated	Y
Hard drive speed	7200 RPM
Number of hard drives installed	1
Hard drive capacity	2000 GB
Hard drive interface	Serial ATA+SSD
Intel® Optane™ Memory module installed	Y
Intel® Optane™ Memory module capacity	16 GB
Graphics
Discrete graphics adapter model	AMD Radeon R5 435
Discrete graphics adapter memory	2 GB
On-board graphics adapter model	Intel® HD Graphics 630
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter dynamic frequency (max)	1000 MHz
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	5912
Maximum on-board graphics adapter memory	64 GB
On-board graphics adapter OpenGL version	4.4
Discrete graphics memory type	GDDR5
On-board graphics adapter	Y
Number of displays supported (on-board graphics)	3
Discrete graphics adapter	Y
Software
Operating system installed	Windows 10 /office 2007/adobe reader/vlcd
Operating system architecture	64-bit
Networking
Ethernet LAN	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Y
Wi-Fi standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Bluetooth	Y
Bluetooth version	4.2
Top Wi-Fi standard	IEEE 802.11ac
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.0 (3.1 Gen 1) Type-A ports quantity	3
DVI port	N
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	Y
VGA (D-Sub) ports quantity	1
USB 3.0 (3.1 Gen 1) Type-C ports quantity	1
Line-out	Y
Line-in	Y
Design
Chassis type	Tower
Refurbished	Y
Product colour	White
Performance
Product type	PC
Audio output channels	5.1 channels
Motherboard chipset	Intel® H270
Processor special features
Intel 64	Y
Enhanced Intel SpeedStep Technology	Y
Embedded options available	N
Intel Clear Video Technology	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Thermal Monitoring Technologies	Y
Intel Trusted Execution Technology	N
Execute Disable Bit	Y
Intel Enhanced Halt State	Y
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Processor code	SR32W
CPU configuration (max)	1
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel Virtualization Technology (VT-x)	Y
Intel TSX-NI	Y
Idle States	Y
Intel Stable Image Platform Program (SIPP)	N
Intel Software Guard Extensions (Intel SGX)	Y
Scalability	1S
Thermal solution specification	PCG 2015C
Conflict Free processor	Y
Intel® Hyper Threading Technology (Intel® HT Technology)	N
Intel® Clear Video HD Technology (Intel® CVT HD)	Y
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel® Clear Video Technology for Mobile Internet Devices (Inte	Y
Intel® Identity Protection Technology (Intel® IPT)	Y
Intel® Secure Key	Y
Intel® OS Guard	Y
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Y
Processor ARK ID	97147
Intel® InTru™ 3D Technology	Y
Weight & dimensions
Width	315 mm
Depth	163 mm
Height	307 mm
Weight	5.7 kg
Packaging content
Display included	N
Optical drive
Optical drive type	DVD-RW
Optical drives quantity	1
General
Product Family	HP Computers Notebooks & Tablets

HP Pavilion 570-p055a Desktop PC Product Specifications

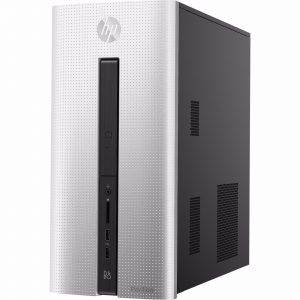

Name: HP Pavilion 570-p055a Intel® Core™ i5-7400 16GB 120GB SSD +2TB Radeon R5 WIN10
SKU: 13344
Price: 560.00 AUD
Availability: InStock

NOTE:

Configuration and color might vary depending on your model.

Product release information

Product number

Y0P66AA

Release date

11-Jul-2017

Country/Region sold in

Australia/New Zealand

Motherboard

Lubin

Figure : Lubin motherboard top view

Form factor: Customized: 20.5×22.0 cm (8.1×8.7 in)
Chipset: H270
Memory sockets: 2 x DDR4
Processor socket: LGA 1151
Expansion Slots:
- One PCI-E x16 socket
- One M.2 socket 1, key A
- One M.2 socket 3, key M
For more details, see Lubin motherboard specifications.

Processor

Intel Core i5-7400

CPU speed: 3.0 GHz (max turbo boost – 3.5 GHz)
CPU cores: 4
CPU Cache: 6 MB
TDP: 65 W
Socket: LGA 1151

Processor upgrade information

TDP: Up to 65 W
Socket type: LGA 1151

Motherboard supports the following processor upgrades:

Processor	TDP	Integrated Graphics
Intel Core i7-7700 (Kabylake) 3.6 GHz Quad Core	65 W	Intel HD Graphics 630
Intel Core i5-7400 (Kabylake) 3.0 GHz Quad Core	65 W	Intel HD Graphics 630
Intel Core i3-7100 (Kabylake) 3.9 GHz Dual Core	51 W	Intel HD Graphics 630
Intel Pentium G4560 (Kabylake) 3.5 GHz Dual Core	54 W	Intel HD Graphics 610
Intel Celeron G3930 (Kabylake) 2.9 GHz Dual Core	51 W	Intel HD Graphics 610
Intel Core i3-6100 (Skylake) 3.7 GHz Dual Core	51 W	Intel HD Graphics 530
Intel Pentium G4400 (Skylake) 3.3 GHz Dual Core	54 W	Intel HD Graphics 510
Intel Celeron G3900 (Skylake) 2.8 GHz Dual Core	65 W	Intel HD Graphics 510

Memory

8 GB

Amount: 8 GB
Speed: PC4-19200 MB/s
Type: DDR4-2400

Memory upgrade information

Dual channel memory architecture
Two DDR4 UDIMM (288-pin) sockets
Supports up to PC4-19200 (DDR4-2400)
Supports 2 GB, 4 GB, and 8 GB UDIMMs
Supports up to 4 GB on 32-bit systems

NOTE:

32-bit systems cannot address a full 4.0 GB of memory.
Supports up to 16 GB (unbuffered) on 64-bit computers

NOTE:

Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

Video graphics

AMD Radeon R5 435 (2 GB)

Form Factor: Full-height PCB with ATX
Dimensions: 4 Layer / (4.5 in x 2.7 in)
Memory size: 2 GB (64-bit)
Memory type: DDR5
Total power consumption: <30 W max

Integrated graphics

Integrated Intel HD Graphics

NOTE:

Integrated video is not available if a graphics card is installed.

Sound/Audio

Integrated audio

Audio Codec: ALC3863-CG
High Definition (Azalia) 5.1 channel audio support

NOTE:

The motherboard supports 5.1 surround sound. If the computer does not have the required audio jacks for a 5.1 configuration, additional hardware is required to use 5.1 surround sound.
Audio jack presence detection

NOTE:

An internal speaker is not included with integrated audio. External speakers or headphones are required to hear sound.

NOTE:

Integrated audio is not available if a sound card is installed.

Networking

Integrated Bluetooth 4.2 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 1 x 1 technology

Interface: M.2
Transmission standards: 802.11 a/b/g/n/ac
Dual band: 2.4 GHz and 5.0 GHz

LAN: 1000BASE-T

Technology: Realtek RTL8161
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000BASE-T Ethernet

Hard drives

2 TB

Size: 2 TB
Interface: SATA
Rotational speed: 7200 rpm

16 GB NVMe M.2 TLC Solid State Drive

Size: 16 GB
Interface: M.2
Type: TLC Solid State Drive

CD/DVD disc drive

DVD Writer

Data transfer rates up to 3,600 KB/s (CD read/write)
Data transfer rates up to 10,800 KB/s (DVD read/write)

Formats/Disc types	Write speeds	Read speeds
DVD
DVD-ROM SL	N/A	up to 8x
DVD-ROM DL	N/A	up to 8x
DVD+R SL	up to 8x	up to 8x
DVD+R DL	up to 6x	up to 8x
DVD-R SL	up to 8x	up to 8x
DVD-R DL	up to 6x	up to 8x
DVD+RW	up to 8x	up to 8x
DVD-RW	up to 6x	up to 8x
CD
CD-R	up to 24x	up to 24x
CD-RW	up to 10x	up to 24x
CD-ROM	N/A	up to 24x

Memory card reader

3-in-1 memory card reader

Figure : Memory card reader

Supports the following cards:

Secure Digital (SD)
Secure Digital High Capacity (SDHC)
SDXC

Computer case

Chassis

Height: 30.71 cm (12.09 in)
Width: 16.31 cm (6.42 in)
Depth: 39.50 cm (12.40 in)
Weight 5.70 kg (12.57 lb) – without packaging

Power supply

Internal 300 W power supply

300 W internal E6 Bronze efficiency power supply
Active efficiency Bronze level: 85%

I/O ports

Front I/O ports

USB 3.0: 1
USB 3.0-Type C: 1
Headphone/Microphone: 1

Back I/O ports

NOTE:

The configuration might differ depending on your model (for example, if a dedicated graphics card is included). Any modifications or upgrades might change the configuration, port accessibility, and port functionality.

Keyboard, mouse and input devices

Wireless keyboard

Wireless technology: Two-way radio frequency
Batteries: 2 AAA alkaline batteries
Battery life: 10 months (typical)
Dimensions (approximate):
- Height: 26.5 mm (1.0 in)
- Width: 133.0 mm (5.2 in)
- Length: 380.2 mm (15.0 in)
Special keys:
- Mute
- Volume Up
- Volume Down

Wireless mouse

Wireless technology: Two-way 2.4GHz Radio Frequency
Batteries: 2 AA alkaline
Battery life: 6-12 months (typical)
Buttons:
- 2 primary buttons
- Clickable scroll wheel
Dimensions (approximate):
- Length: 114.8 mm (4.5 in)
- Width: 63.4 mm (2.5 in)
- Height: 37.2 mm (1.5 in)

Software

Titles that shipped with PC

NOTE:

HP provides basic support for software that comes with the computer. For in-depth feature assistance, refer to the help section in the software or on the software vendor’s Web site.

Software Category	Software Title	Recovery Manager: Program Reinstallation
Operating System	Microsoft Windows 10 Home (64-bit)	No
Entertainment, Music & Games	Booking.com CyberLink Power Media Player HP Audio Switch HP Games Netflix Solitaire 5.1 Surround Sound (simulated through headphones)	No Yes Yes No No No No
Productivity	Dropbox HP Jumpstart HP Orbit	No No Yes
Imaging, Photography, Video & Film	CyberLink PowerDirector HP ePrint	Yes No
Security	McAfee LiveSafe (30-day subscription)	No
Support	HP Documentation HP PC Hardware Diagnostics UEFI HP Support Assistant	Yes Yes Yes
Recovery	HP Recovery Manager	No
Browser	Microsoft Edge	No

Additional information

Weight	8 kg
