Description

Technical Specifications

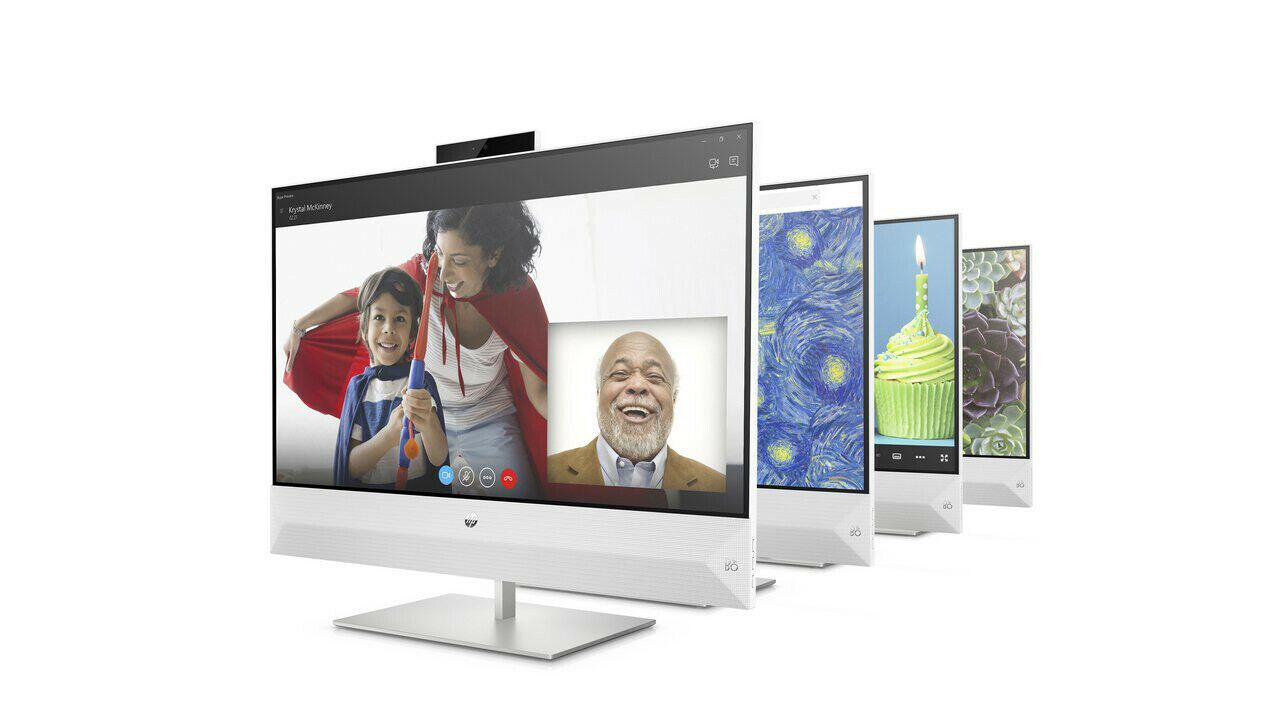

•        HP Pavilion24-xa0002aAll-in-One Desktop PC (White)   Refurbished Pc

Specifications

• AMDY RAYZN 5 2600H  3.35  GHz, 4 cores)
• 16 GB DDR4
• AMD graphics intergrade
• 256GB SSD +1TB  Hard Drive.
• 24“ diagonal  68.58cm WLED-backlit (1920 x 1080)  touch screen
• Integrated Audio
• 3-in-1 Memory card reader
• Integrated Webcam with microphone
• Integrated 1000BASE-T Gigabit Ethernet LAN
• Integrated Bluetooth 4.0 and Wireless LAN 802.11b/g/n featuring 2.4 GHz 1 x 1 technology
• 2 USB 3.0, 4 USB 2.0, 1 headphone/microphone combo, HDMI, LAN
•  HP Wireless Keyboard, mouse, AC Adaptor & Power Cord included
• Microsoft Windows 11   (64-bit)/office 2007 /adobe reader/ VLC player
• speaker / stand have few marks otherwise it in good condition.

HP Pavilion 24-xa0002a All-in-One Desktop PC Product Specifications

NOTE:

Chassis color might vary depending on your model.

Display

60.45 cm (23.8 in) diagonal widescreen full high-definition BrightView WLED-backlit touch-enabled display (1920 x 1080)

• Size: 60.45 cm (23.8 in) diagonal
• Display resolution: 1920 x 1080

Motherboard

Centrix

• Form factor: Customized: 12.7 x 30.2 cm (5.0 x 11.89 in)
• Chipset: SOC without FCH
• Memory sockets: 2 x DDR4 SODIMM
• Expansion Slots:
  • One M.2 socket 1, 2230 type for WLAN
  • One M.2 socket 3, 2280 type for SSD
• NOTE: The configuration might vary depending on your model.
• For more details, see Centrix motherboard specifications.

Processor

AMD Ryzen5-2600H (Raven Ridge)

• CPU speed: 3.35 GHz (3.6 GHz – maximum turbo boost)
• CPU cores: 4
• TDP: 35-54 W
• Integrated graphics: AMD Radeon Vega 8 Graphics

Processor upgrade information

Memory

16 GB

• Amount: 16 GB
• Speed: PC4-21300 MB/s
• Type: DDR4-2666

Memory upgrade information

• Dual channel memory architecture
• Two DDR4 SODIMM (260-pin) sockets
• Supports up to
  • R3 25 W: PC4-19200 (DDR4-2400)
  • R5 35 W: PC4-21300 (DDR4-2666)
• Supports 2 GB, 4 GB, and 8 GB DDR4 SODIMMs
• Supports up to 4 GB on 32-bit systems
• NOTE: 32-bit systems cannot address a full 4.0 GB of memory.
• Supports up to 16 GB (unbuffered) with 8 GB DIMMs on 64-bit systems
• NOTE: Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

Video graphics

Integrated graphics

• AMD Radeon Graphics
• NOTE: Integrated video is not available if a graphics card is installed.

Sound/Audio

Integrated audio

• Audio Codec: Realtek ALC3259
• Audio jack presence detection

Speakers

• Integrated speakers

Networking

Integrated Bluetooth 4.2 and Wireless LAN 802.11a/b/g/n/ac featuring Dual-band (2.4 GHz and 5.0 GHz) 2 x 2 technology

• Interface: M.2
• Transmission standards: 802.11 a/b/g/n/ac
• Dual band: 2.4 GHz and 5.0 GHz

LAN: 1000BASE-T

• Technology: Realtek RTL8111HSH
• Data transfer speeds: up to 10/100/1000 Mb/s
• Transmission standards: 1000BASE-T Gigabit Ethernet

Hard drives

256 GB PCIe NVMe TLC M.2 Solid State

• Size: 256 GB
• Interface: M.2
• Type: TLC Solid State

1 TB

• Size: 1 TB
• Interface: SATA
• Rotational Speed: 5400 RPM
• Width: 6.35 cm (2.5 in)

CD/DVD disc drive

No included disc drive

There is no disc drive included with this model.

Memory card reader

3-in-1 Memory card reader

Figure : View of memory card reader

Supports the following cards:

• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• SDXC

Computer case

All-in-One

• Height: 44.24 cm (17.42 in)
• Width: 54.03 cm (21.27 in)
• Depth: 16.0 cm (6.3 in)
• Weight: 5.59 kg (12.32 lb) unpackaged

Front of the system

NOTE:

The configuration might vary depending on the model.

Figure : Front of the system

1. Webcam
2. Screen
3. Power button
4. Speakers

Back of the system

NOTE:

The configuration might vary depending on the model.

Figure : Back of the system

1. I/O ports rear cover
2. Back I/Os
3. Stand
4. Card reader

Power supply

External 120 W

• Total wattage: 120 W
• Output voltage: 19.5 V
• Efficiency: 89%

I/O ports

Back I/O ports

NOTE:

The configuration might vary depending on your model.

Figure : Rado TS 24 Back I/O ports

1. DC Power input
2. RJ-45 connector
3. HDMI in
4. HDMI out
5. USB 3.0 port: 3
6. USB 3.1 Type-C port: 2
7. SD card reader
8. Audio jack

Keyboard, mouse and input devices

HP wireless keyboard with volume control

• Wireless technology: Nordic Single chip nRF24LE1/LU1 OTP
• Effective distance (typical): 10 m (32.8 ft)
• Batteries: 2 AAA alkaline batteries
• Battery life: 12 months (typical)
• Dimensions (approximate):
  • Height: 17 mm (0.7 in)
  • Width: 114 mm (4.5 in)
  • Length: 409 mm (16.1 in)
• Special keys:
  • Mute
  • Volume Up
  • Volume Down

HP optical mouse

• Wireless technology: Nordic Single chip nRF24LE1/LU1 OTP
• Effective distance (typical): 10 m (32.8 ft)
• Batteries: 2 AAA alkaline
• Battery life: 5 months (typical)
• Tracking speed (typical): 10 in/s
• Accuracy: 15%
• Buttons:
  • 2 primary buttons
  • Scroll wheel
• Dimensions (approximate):
  • Length: 119.5 mm (4.7 in)
  • Width: 65.0 mm (2.6 in)
  • Height: 31.6 mm (1.2 in)

HP Webcam

Figure : HP Webcam

1. Webcam
2. Webcam activity LED
3. Microphones

Software

Titles that shipped with PC

NOTE:

HP provides basic support for software that comes with the computer. For in-depth feature assistance, refer to the help section in the software or on the software vendor’s Web site.

Software Category

Software Title

Recovery Manager: Program Reinstallation
