used product
Functions:
Two voice ports (RJ-11) for analog phones or Fax machines
Impedance Agnostics-8 Configurable Settings
Call Waiting, Cancel Call Waiting, Call Waiting Caller
Caller with Name/Number (Multi-national Variants)
Caller Blocking
Call Forwarding: No answer, Busy, All
Do Not Disturb
Call Transfer
Three-way Conference Calling with Local Mixing
Message Waiting Indication – Visual and Tone Based
Call Return
Call Back on Busy
Call Blocking with Toll Restriction Delayed Disconnect
Distinctive Ringing-Calling and Called Number
Off-hook Warning Tone
Selective/Anonymous Call Rejection
Hot line and Warm Line Calling
Speed Dialing of 8 Numbers/Addresses
Music on Hold
Specifications:

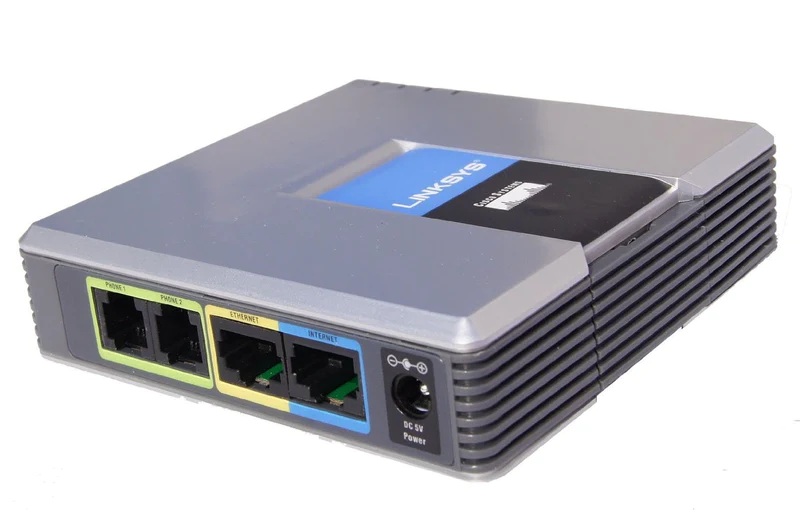

Item Type: PAP2T Main Machine
Material: ABS
Size: Mainboard: 10.5×10.5x3cm/4.1×4.1×1.1in
Color:
Cable Color: Random Delivery (If you buy more than one, colors you receive will be same or different.)
Plug Type: AU Plug, EU Plug, US Plug, UK Plug
Standard: IEEE 802.3, IEEE 802.3u
Port: 1×10/100 for M RJ-45 , 2xstandard telephone interfaces, 1xpower
You can download the Documents of LINKSYS SPA2102 from below links.
Data Sheet
https://www.dropbox.com/s/x3c42aya76nlef4/spa2102-data.pdf?dl=0
Quick Installation
https://www.dropbox.com/s/culjzu1cu2pg5va/spa2102-qi.pdf?dl=0
User Guide
https://www.dropbox.com/s/ruikhhat6sqkxzd/spa2102-ug.pdf?dl=0
Configuration Guide
https://www.dropbox.com/s/b991iiomxi0y7va/SPA2102%20Configuration%20Guides.pdf?dl=0
Linksys ATA Administrator Guide
https://www.dropbox.com/s/9xd509tolihl9zm/SPA_ATA_Admn_v32.pdf?dl=0
