• Form factor: uATX: 24×24 cm (9.4×9.4 in)
• Chipset: H170
• Memory sockets: 2 x DDR4
• Processor socket: LGA 1151
• Expansion Slots:
  • One PCIe (GEN 3) x16 socket
  • One PCIe (GEN 3) x1 socket
  • One M.2 socket 1, key A
• For more details, see Odense2-K motherboard specifications.

• CPU speed: 3.6 GHz (max turbo boost – 4.2 GHz)
• CPU cores: 4
• CPU Cache: 8 MB
• TDP: 65 W
• Socket: LGA 1151

• TDP: Up to 65 W
• Socket type: LGA 1151
• Motherboard supports the following processor upgrades:

  Processor	TDP	Integrated Graphics
  Intel Core i7-7700 (Kabylake) 3.6 GHz Quad Core	65 W	Intel HD Graphics 630
  Intel Core i5-7400 (Kabylake) 3.0 GHz Quad Core	65 W	Intel HD Graphics 630

• Amount: 16 GB
• Speed: PC4-19200 MB/s
• Type: DDR4-2400

• Dual channel (one DIMM per channel) memory architecture
• Two DDR4 UDIMM (288-pin) sockets
• Supports PC4-19200 (DDR4-2400)
• Supports 4 GB and 8 GB UDIMMs
• Supports up to 4 GB on 32-bit systems

  NOTE:

  32-bit systems cannot address a full 4.0 GB of memory.

• Supports up to 16 GB (unbuffered) on 64-bit computers

  NOTE:

  Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

• Form Factor: ATX (full height) PCB with ATX dual slot bracket
• Dimensions: 11.2 cm x 17.3 cm (4.4 x 6.8 in)
• Rear I/O connectors: Dual Link DVI-D + HDMI + 3 DisplayPort
• Maximum resolution:
  • DVI (dual-link) resolution: 2560x1600x32bpp @ 60 Hz
  • HDMI resolution: 4096x2160x24 bpp @ 60 Hz (HDMI 2.0)
  • DisplayPort resolution: 5120x3200x24bpp @ 60 Hz / 7680×4320 @ 60 Hz YUV 420 8 bit

    NOTE:

    Not all ports support the highest resolutions.

• Memory size: 4GB (192-bit)
• Memory type: 256Mx32 GDDR5 @ 6 pcs
• Supports up to 3 displays at the same time.

• Integrated Intel HD Graphics

  NOTE:

  Integrated video is not available if a graphics card is installed.

• Audio Codec: ALC3863-CG
• High Definition (Azalia) 5.1 channel audio support

  NOTE:

  The motherboard supports 5.1 surround sound. If the computer does not have the required audio jacks for a 5.1 configuration, additional hardware is required to use 5.1 surround sound.

• Audio jack presence detection

  NOTE:

  An internal speaker is not included with integrated audio. External speakers or headphones are required to hear sound.

  NOTE:

  Integrated audio is not available if a sound card is installed.

• Interface: M.2
• Transmission standards: 802.11 a/b/g/n/ac
• Dual band: 2.4 GHz and 5.0 GHz

• Technology: Realtek RTL8161
• Data transfer speeds: up to 10/100/1000 Mb/s
• Transmission standards: 1000BASE-T Ethernet

• Size: 128 GB
• Interface: SATA
• Type: TLC Solid State
• Width: 2.5 in (6.35 cm)

• Size: 2 TB
• Interface: SATA
• Rotational Speed: 5400 rpm

• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• SDXC
• Memory Stick
• Memory Stick Select
• Memory Stick PRO
• Memory Stick MagicGate

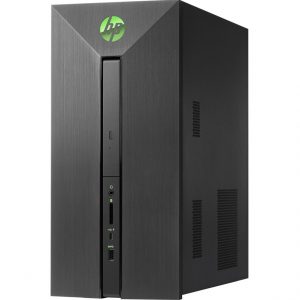

• Height: 36.40 cm (14.33 in)
• Width: 16.51 cm (6.50 in)
• Depth: 37.80 cm (14.88 in)
• Weight 7.15 kg (15.77 lbs) – without packaging

• 300 W internal uATX E-STAR 6.0 Bronze power supply

• USB 3.0: 1
• USB 3.0-Type C: 1
• Headphone/Microphone: 1

NOTE:

The configuration might vary depending on your model (for example, if a dedicated graphics card is included). Any modifications or upgrades might change the configuration, port accessibility, and port functionality.

1. USB 2.0: 2
2. LAN (Ethernet)
3. HDMI out: 2
4. USB 3.0: 2
5. Audio: Line in
6. Audio: Line out
7. Audio: Microphone
